Keysight Technologies (Agilent HP) 34902A () Main Features and Specifications

Product Specs

  • Status -

See also

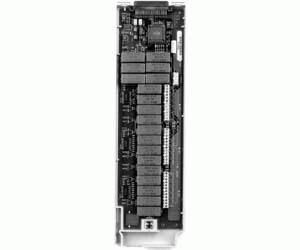

The Agilent 34902A module for the 34970A Data Acquisition/Switch Unit employs reed relays to achieve scan rates up to 250 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.

Sixteen two-wire inputs switch up to 300 V. Two-and four-wire channels may be mixed on the same module. User provided shunt resistors are required for current measurements.

  • 16 Channel Multiplexer
  • Input: 300 V, 50 mA, 2 W
  • Two- and four-wire scanning
  • 250 ch/s scanning
  • Built-in thermocouple reference junction
  • Reed relays multiplex inputs to 34970A internal DMM
  • Multiple channel closures allowed when not configured for scanning
