Keysight Technologies (Agilent HP) 11720A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative E8257D PSG Analog Signal Generator

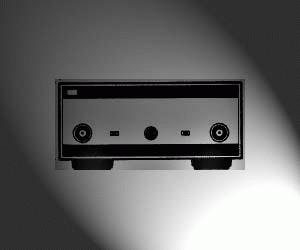

The 11720A is a high-performance pulse modulator covering the range of 2 to 18 GHz. Driven by a pulse generator, this modulator can modulate the microwave output from microwave sources (including a 8349B microwave amplifier) to produce unleveled RF pulses with 10 nsec rise and fall times and >80 dB on/off ratio. This combination driving the 83550-series millimeter-wave source modules can deliver high-quality pulse performance to 60 GHz.

  • Frequency range: 2 to 18 GHz
  • On/Off ratio: >80 dB
  • Insertion loss
    • 2 to 12.4 GHz: <6 dB
    • 2 to 18 GHz: <10 dB
  • Rise and fall times: <10 ns
  • Maximum RF input power: +20 dBm
  • Minimum RF pulse width: <50 ns
  • Pulse width compression: <20 ns
  • Maximum pulse repetition rate: >5 MHz
  • Maximum delay time: <60 ns
  • Video feedthrough: <50 mVp-p
  • Overshoot, ringing: <0.2
  • Pulse input
    • Normal mode: >3 V (on), <0.5 V (off)
    • Complement mode: <0.5 V (on), >3 V (off)
    • Impedance: 50 Ω
  • Connectors
    • RF (IN and OUT): Type N, female
    • Pulse input: BNC female
