Willtek 9102 (9100 Series) Main Features and Specifications

Product Specs

  • Status -

See also

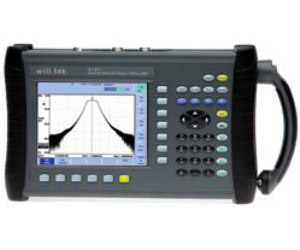

The Willtek 9102 Handheld Spectrum Analyzer is a multifunction instrument designed for lab and field applications concerning scalar network and spectrum analysis, including cable and antenna measurements and EMC pre-qualification tests. The basic 9102 has a frequency range of 100 kHz to 4 GHz and a resolution bandwidth (RBW) of an exceptional 1 kHz. An optional frequency extension allows measurements up to 7.5 GHz. The 9102 is small in size and weight, with a large, bright display and easy-to-use menu structure.

  • February, 2007: Optional frequency extension to 7.5 GHz
  • VSWR and DTF measurements option supporting antenna installation and verification
  • Tracking generator option enables cable measurements in the field
  • Radiation measurements of base stations and broadcast stations (EMF option)
  • Scalar network analysis (amplifier gain over frequency or filter characteristics) and antenna measurements
  • Prequalification for EMC (electromagnetic compatibility) tests
  • Displayed average noise level at -117 dBm
  • Dynamic range of 70 dB

Get Price Quotes

Willtek 9102 Opts: no options
  • €3,798
