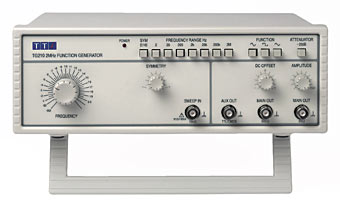

Aim-TTI TG210 (TG200 Series) Main Features and Specifications

Product Specs

  • Status -

The TG210 offers all of the basic generator functions including sine, square & triangle waveforms, variable DC offset, variable symmetry and external sweep input
The TG200 series provides very high waveform quality under all conditions. That means low sinewave distortion, low aberation triangle waves and fast-edged square waves with low overshoot.
Unlike many competitive products good waveform quality is maintained throughout the frequency range, and at low output levels.
All models of TG200 Series have bi-directional variable symmetry at constant frequency from 1:9 to 9:1.
The main output has a maximum emf of 20V pk-pk from a 50W or 600W source. An amplitude vernier with a range of 40dB is combined with a -20dB switched attenuator to provide levels down to 20mV pk-pk. Variable DC offset of +/-10V is available via a centre detent control.
An auxiliary output provides a fixed 0V to +5V level suitable for driving both TTL and CMOS loads.
Each sweep range can be swept by at least 1000:1 either manually or via the sweep control input.

  • 0.002Hz to 2MHz frequency range
  • High waveform quality at all frequencies & levels
  • 1000:1 frequency change on each range
