Seller: BRL Test, Inc.
Location: USA

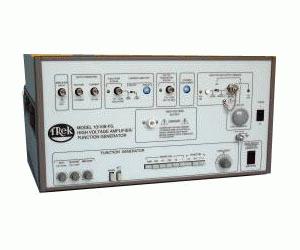

The Model 10/10B-FG High-Voltage Function Generator is a combination of a DC-stable, high-voltage amplifier and a function generator.
The high power amplifier is designed to provide precise control of output voltages in the range of 0 to ±10 kV DC or peak AC with an output current range of 0 to ±10 mA DC or peak AC.
In the amplifier mode, the 10/10B-FG is configured as a noninverting amplifier with a fixed gain of 1000 V/V. The four-quadrant, active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range. This is essential for achieving the accurate output response and high slew rates demanded by reactive loads.
The high-voltage function generator is capable of generating square, triangle, and sine waveforms in the frequency range of 0.2 Hz to 10 kHz. The Model 10/10B-FG features an all-solid-state design for high slew rate, wide bandwidth, and low-noise operation.
The Model 10/10B-FG is protected against over-voltage and over-current conditions that may be generated by active loads or by output short circuits to ground. Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or for use as feedback signals in a closed-loop system. The Remote High Voltage On/Off feature provides a connection for a remote device to turn on and off the high voltage of the instrument. This makes the 10/10B-FG suitable for automated or computer controlled systems.
