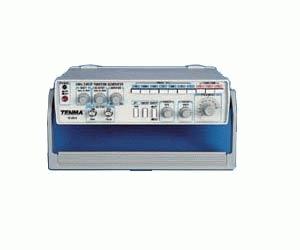

Tenma 72-5010 (Sweep Function Generators) Main Features and Specifications

Product Specs

  • Status -
  • Sine, square, triangle wave output
  • 50ohm output
  • TTL output
  • Variable: duty, amplitude, DC offset, sweep width and rate
  • Output invert switch
  • Output attenuator (-20dB)
  • Linear sweep mode
  • Internal/external sweep selection
  • VCF input
  • Adjustable easel stand
  • Unique stackable case design
  • Power requirements: 100V, 120V, 220V, 240VAC, 50/60Hz
  • Includes owners manual and power cord

Specifications:

  • Generator frequency .2Hz~2MHz in 7 range steps
  • VCF voltage level 0~10VDC
  • Output amplitude >20V p-p (open), >10V p-p (50ohms)
  • Square wave rise/fall time <100nsec into 50ohms
  • Pulse rise/fall time <25nsec (20 TTL loads)
  • Sweep time 20msec~2sec
  • Sweep width >100:1
  • Frequency variable >10:1
  • Variable DC offset ±10VDC (open), ±5VDC (50ohms)
  • Variable duty cycle 5:1 minimum
  • Dimensions/weight 10 1/4" (W) x 2 3/4" (H) x 8 1/4" (D)/4 lbs.
