Showing Results for Stanford Research Systems SR554

4 results found for Stanford research systems sr554
Similar models:  Stanford Research Systems SR550
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Stanford Research Systems SR554 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Stanford Research Systems SR554 (Lock-In Preamplifiers) Main Features and Specifications

Product Specs

  • Status -

See also

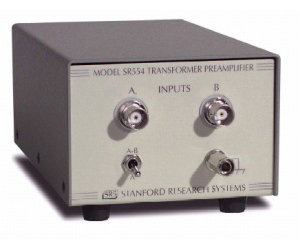

The SR554 is a low-noise, transformer-coupled preamplifier optimized for source impedances between 0.05 W and 1 kW. With an input noise of only 0.1 nV/ÖHz, the SR554 can be used in a wide range of low-noise applications. It is the ideal preamplifier for low-temperature synchronous detection applications where isolation between the experimental sample and the lock-in amplifier is critical. The SR554 can operate in one of two modes. In the "bypassed" mode, the instrument is simply a passive transformer with a turns ratio of 100, providing an overall voltage gain of 100. In the "non-bypassed" mode, an additional amplifier with a gain of 5 is added increasing the gain to 500 and providing a low-impedance (<1 W) output. In the bypassed mode, the SR554 requires no external power. When using the output amplifier, ±20 VDC must be supplied. The preamplifier connector on SRS lock-ins can be used to power the SR554.
