Here you will find a large selection of new and used Rohde & Schwarz SMBV-B106 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

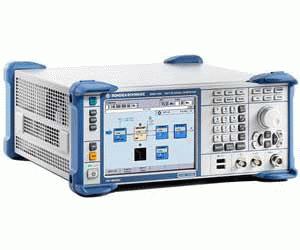

Rohde & Schwarz SMBV-B106 (SMBV100A Vector Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 1 mHz
  • Output Power –120 dBm to +18 dBm (auto mode)
  • Modulation AM,FM,Pulse,Phase,FSK,I/Q,Analog,Digital,ASK,PSK,QAM
  • Status -

See also

The R&S®SMBV100A offers excellent RF performance along with very high output level and short setting times. At the same time, the R&S®SMBV100A can be equipped with an internal baseband generator to allow generation of a number of digital standards (for example, WiMAX, HSPA+, LTE). The wide frequency range from 9 kHz to 6 GHz covers all of the important bands for digital modulation.

  • Future-proof hardware concept
  • RF section with high output level up to 6 GHz
  • Wide RF signal bandwidth of up to 120 MHz with internal signal generation
  • Maximum RF bandwidth of I/Q modulator exceeds 500 MHz
  • Always up-to-date with software upgrades
  • Straightforward signal configuration due to easy-to-use GUI
  • 2G/3G/LTE mobile radio standards
  • Wireless standards including mobile WiMAX and WLAN IEEE 802.11n
  • Excellent phase noise ensures low EVM with digital signals
  • High output level compensates for losses in test/system setup
  • Fast settling time for quicker measurements
  • Analog modulation for basic measurements
  • CW interference and AWGN simulation
  • Analog baseband outputs
  • Fast on-site servicing
  • Long calibration interval (three years) minimizes service costs
  • Straightforward modular design for short repair times
  • Optimized for high production throughput
    • Multisegment waveform mode for fast switchover between test sequences
    • High level repeatability ensures stable test conditions
