QuadTech 1030 (Guardian 1000 Series) Main Features and Specifications

Product Specs

  • Max. Output AC Voltage 5 kV
  • Output AC Current 30 mA
  • Max. Output DC Voltage 6 kV
  • Output DC Current 10 mA
  • Additional Measurements Ground continuity,Electronic ramping,Insulation resistance
  • Status -
  • Launch Date Sep-2001

See also

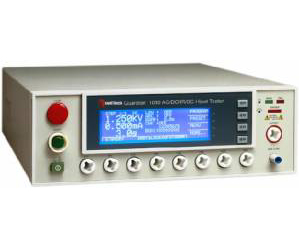

The Guardian 1030 AC/DC/IR Hipot Tester has all the features of the Guardian 1010 with the addition of DC hipot and IR measurement capabilities. The test voltage can be programmed in the range from 50VDC to 6kVDC with a resolution of 1V. The maximum total current is 10mA. The IR measurement range is from 0.1M to 50G with test voltages from 50 to 1000VDC. Programmable Output Voltage to 5kV AC and 6kV DC Programmable Ramp and Test Times Quick Discharge of DUT in IR and DC Hipot Programmable High and Low Limits Storage of 99 Tests Setups with Multiple Steps per Measurement Remote Control & RS232 Interfaces Ground Continuity Check with 1ohm Limit Front Panel Lockout Arc Detection with Programmable Limit Resistance Measurements from 0.1M to 50G. Application Wizard for Easy Testing.
