Kikusui PWR Series - M Type (PWR Series) Main Features and Specifications

Product Specs

  • Number of Outputs Single
  • Max. Voltage 320V
  • Max. Current 25A
  • Ripple and Noise 15 mVrms
  • Computer Interface GPIB,RS-232
  • Status -

See also

The PWR Series offers constant voltage (CV)/constant current (CC) automatic crossover DC power supplies that enable you to combine a wide range of voltages and currents within the output power rating. For example, the model that has an output power rating of 1600W (PWR1600L) provides a seamless operation range from 80 V - 20 A to 16V - 100A. With a single PWR Series power supply alone, you can cover an extensive output range equivalent to what is provided by three to six conventional single range DC power supplies. L type can output up to 160% of the output current rating (in the continuous and intermittent extended operation areas). PWR1600L supports a maximum output of 10 V - 160 A.

  • Seamless Quintuple Variable Voltage/Current Range
  • Best for testing a wide variety of high-voltage devices including margin tests
  • Parallel or Serial Operation
  • Up to 32 PWR series power supplies Can Be Controlled with One GPIB Address
  • Analog external control functions are available, providing voltage- and resistance-based output voltage and current controls
  • The power supply comes standard with the remote monitoring function. External analog monitoring can be done with respect to the output voltage, output current, and operation mode
  • A built-in power factor correction circuit (with power factor 0.98) for harmonic current suppression, as well as a highly efficient switching circuit (efficiency 70%), are featured
  • A four-digit display can display the voltage, current, and power (W). It allows you to set the voltage and current while checking on the power
  • The power supply has front-side output terminals (up to 30 A) for desktop use
  • Over voltage protection (OVP), over current protection (OCP), over power protection (OPP), and over heat protection (OHP) are provided as standard protection circuits
  • A universal AC input supports a range of voltages from 100 V to 240 V

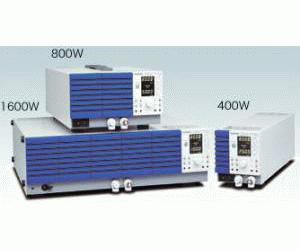

M-Type Lineup:

  • PWR400M 400W, 0 to 320V/0 to 6.25A
  • PWR800M 800W, 0 to 320V/0 to 12.5A
  • PWR1600M 1600W, 0 to 320V/0 to 25A
