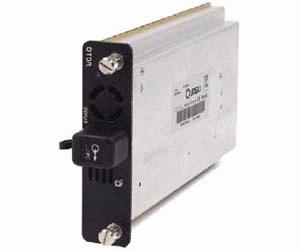

JDSU E8117RLR (T-BERD/MTS LR OTDR Modules) Main Features and Specifications

Product Specs

  • Wavelengths [nm] 1.6 k
  • Min.Pulse Width 3 nsec
  • Max Pulse Width 20 µsec
  • Distance Range Min. 2.6m
  • Distance Range Max. 380 km
  • Distance Resolution 4 cm sampling resolution
  • Dynamic Range 41dB
  • Status -

See also

The JDSU OTDR plug-in module family offers a wide range of high-performance OTDRs for the network applications of today, such as FTTx, 40G and ROADM.

  • Field interchangeable single slot size
  • Compatible with MTS-8000 / T-BERD 8000, MTS-6000 / T-BERD 6000 and OTU-8000
  • New wavelengths to cover 1383 nm (CWDM) and 1490 nm (FTTx)
  • Unique automated bi-directional OTDR testing
  • Simple for the novice, fully featured for the expert
  • Highest dynamic range up to 50 dB
  • Shortest dead zones down to 0.8 m
  • Fastest scan speed at 0.1 s in real-time mode
  • Four-wavelength singlemode module
  • Up to 128000 acquisition points with sampling resolution down to 4 cm
  • Comprehensive suite of PC software tools for post-processing of test results, including FiberTrace (OFS-100) and FiberCable (OFS-200)

In the telecommunications market of today, test solutions must be cost effective, increase productivity, and reduce the complexity of field testing. The JDSU Long Range (LR) OTDR Module offers a high-performance OTDR test module that has been specifically developed in response to these industry demands.
Configurable at the time of order, the LR OTDR Module offers multiple wavelength test capabilities (1310, 1490, 1550, and 1626 nm), providing field technicians with an all-in-one test instrument.
The LR OTDR Module performance enables effective testing on short haul (access, FTTx, P2MP), long haul, and very long haul networks.

  • Pinpoint any fault in the network
  • Discriminate between a failure or break within the patch panel or distribution frame
  • Reduce testing time for medium and long haul fiber network commissioning
  • Obtain a superior and cleaner trace form for high link loss for best fault detection
