GW Instek GDS-1042 (GDS-1000 Series) Main Features and Specifications

Product Specs

  • Status -
  • Launch Date Nov-2007

See also

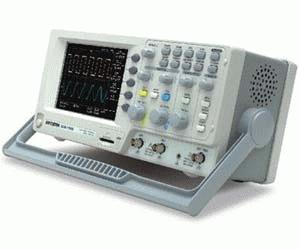

The GDS-1042 is a powerful DSO while still being extremely affordable. Operating at up to 40 MHz with 250 MSa/s (real time) and an astonishing 25 GSa/S ET(Equivalent Time) sampling rate, it is both quick and versatile. Built with a 5.6" color TFT LCD display and featuring 4000 point long record lengths, the GDS-1042 DSO provides an excellent balance of performance, memory length, sampling speed, and ease-of-use. Other major features include user-friendly menu tree operation, compact size, ergonomic design, PC connectivity, convenient SD card memory storage, and a Lifetime Warranty (limitations apply), all as standard. The GDS-1042 DSO is designed to meet the most demanding budgets and engineering requirements of today.

  • 40 MHz Bandwidth
  • 2 Input Channels
  • 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
  • 4k Memory Length per Channel
  • Peak Detect as Fast as 10ns
  • Save/Recall of 15 Front Panel Settings & Waveforms
  • 5.6" TFT Color Display
  • 19 Auto Measurements
  • Arithmetic Operators - Add, Subtract, FFT
  • Timebase Range: 1nS ~ 10nS/div
  • USB Port for PC Connection
  • 6-Digit Real-Time Frequency Counter
  • SD Card Supported
