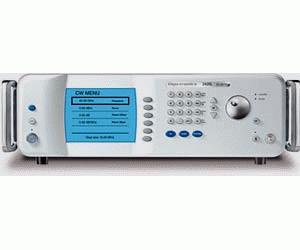

Giga-tronics 2408L/AL (2400L Series) Main Features and Specifications

Product Specs

  • Status Discontinued

See also

The 2400L Microwave Synthesizer is the first general purpose microwave synthesizer in the industry delivering both low phase noise and fast frequency switching capabilities simultaneously. The 2400L Series Synthesizer achieves low phase noise, high power, and fast frequency simultaneously, making it an excellent test solution for a wide range of CW, sweep, and step frequency applications in both R&D and manufacturing environments.

  • Frequency range 10 MHz - 8 GHz
  • Automation Xpress, the PC based software package designed for enhanced user interface and automatic test systems is INCLUDED WITH THE PURCHASE OF ANY 2400L SERIES.
  • Switching speed is less than 500 µs for any frequency step size Automation Xpress Interface (AXI) (Option 48) provides Xpress 2.5 ms CW Frequency/Power switching, faster data exchange and functional downloads/executions, and a stable API programming interface for the ATE programming environment (Option 48, for use with Giga-tronics Automation Xpress software).
  • Frequency and Power Sweep is available as an option on all models.
  • Low Phase Noise comes STANDARD.
  • Phase noise at 10 GHz is -92 dBc/Hz at 10 kHz offset.
  • A 2-year calibration cycle is recommended and a 1-year warranty is standard; extended warranty available.
  • Typical output power is +15 dBm or greater from 0.01 to 20 GHz with 0.01 dB resolution.
  • Typical output power is +9 dBm or greater from 0.01 to 40 GHz with 0.01 dB resolution.
  • The 2400L harmonics are less than -50 dBc over the full frequency range from 0.01 to 20 GHz.
