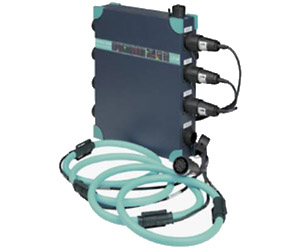

Fluke EP2090A (Topas 2000) Main Features and Specifications

Product Specs

  • Input Channels 8
  • Instrument Type Portable
  • Interfaces RS-232,PC software
  • Operation Modes Event recorder/analyzer, online mode, scope, report writer, meter, amplitude spectrum, time plot
  • Measurements current, voltage, active power, reactive power, apparent power, rms, PF,power quality, transients, power peaks, ripple, harmonics, interharmonics, time, THD, interferences
  • Status Discontinued
  • Launch Date Jun-2005
  • Alternative 1760

Topas 2000 is the first choice of power quality experts for investigating critical power quality issues. The versatile measurement and trigger algorithms and the powerful 10MHz sample rate enable the user to configure the unit for virtually any application

Topas 2000 is the first power quality analyzer fulfilling IEC 61000-4-30 class A accuracy, frequency synchronization, and absolute time requirements. Topas 2000 applications include assessing power quality compliance, troubleshooting elusive power quality issues, and long term monitoring of critical loads.

  • Accurately validate system performance with IEC 61000-4-30 class A accuracy and prove EN50160 compliance
  • Ultimate control – versatile measurement algorithms and trigger settings allow the expert user to optimize Topas for each application
  • Rugged design with no rotating components, 0 ºC – 50 ºC (32 ºF – 122 ºF) operating range, and IP50 enclosure enable reliable field testing under nearly any conditions
  • Integrate Topas 2000 into Ethernet networks
  • Get a detailed picture of even the shortest events with a 10 MHz, 6000 Vpk waveform capture
  • Correlate data with events or other datasets with precise GPS time synchronization
  • Comprehensive software provides trend diagrams, statistical summaries, report writing and real-time data monitoring while in the online mode
  • Verify instrument setup with the ONLINE mode before starting long-term recordings
  • Set up in seconds with self-identifying current probes
  • Never miss important events - The uninterruptible power supply for 40 min of operations in case of power outages
  • Wide range power supply 83 V …264 V AC, 50 Hz / 60 Hz; 100 V … 375 V DC
