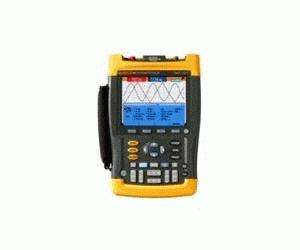

Fluke 199CM (190 Medical ScopeMeter (R) Series) Main Features and Specifications

Product Specs

  • Display Count 5 k
  • Measurements DCV,ACV,Resistance,Continuity,Diode,DCA,ACA,TRMS,Temperature
  • Bandwidth 200 MHz
  • Sample Rate 2.5 GSa/sec
  • Display 144 mm full color LCD with fast update rate
  • Status -

See also

The Fluke 190 Series Medical ScopeMeters are high-performance oscilloscopes for the most demanding applications when servicing medical imaging equipment and video systems. Based upon the Fluke 190 Series ScopeMeters, the Fluke 190 Series Medical ScopeMeter offers measurement capabilities optimized for servicing medical equipment in the following modalities: X-ray, MRI, Nuclear Medicine and Ultrasound.

  • Dual input - 100 or 200 MHz bandwidth
  • Up to 2.5 GS/s real-time sampling per input
  • mAs current-over-time measurement
  • Connect-and-View™ automatic triggering, a full range of manual trigger modes plus external triggering
  • Video triggering with line selector for standard and high-resolution video systems
  • Smart averaging
  • Selectable persistence mode
  • 27,500 points per input record length using ScopeRecord™ mode
  • Automatic capture and replay of 100 screens
  • Automatic waveform measurements
  • Four hours rechargeable NiMH battery pack
  • 1,000V CAT II and 600V CAT III safety certified
  • Up to 1,000V independently floating isolated inputs
  • Includes a 5,000 counts true-rms multimeter and a TrendPlot™ paperless recorder
  • FlukeView Software, Carrying Case and accessories included
