Showing Results for Dranetz BMI PowerLogger 10 M229J

1 results found for Dranetz bmi powerlogger 10 m229j
Similar models:  Dranetz BMI Drantech Ultra M230H
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Dranetz BMI PowerLogger 10 M229J listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

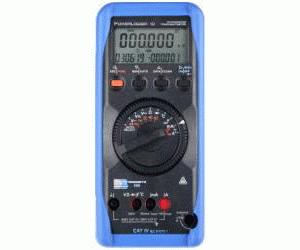

Dranetz BMI PowerLogger 10 M229J (Drantech Digital MultiMeters, Power Meters) Main Features and Specifications

Product Specs

  • Status -

See also

The PowerLogger 10 multimeter is a power quality troubleshooting tool, as well as a high performance precision instrument for laboratory use, service and training. With a display range of 300,000 counts, as well as outstanding accuracy and long-term stability, it fulfills all requirements for use in calibration and R&D laboratories. The instrument can be utilized on-site for precision maintenance and calibration tasks thanks to battery operation.

  • Voltage 600 V and current 10 A (Rms or DC)  max measurements
  • Frequency, RMS value of AC measuring voltage
  • DC measurement precision, 5¾ places ( 309,999 counts)
  • AC measurement precision, 4¾ places ( 30,999 counts)
  • Power and Energy measurements (W, VAr, VA, Wh, VArh, PF)
  • Maximum value for periodic power with date and time
  • RMS Waveshape, allows for waveshape independent measurement (TRMS AC and AC+DC) up to 100 kHz, and up to a crest factor of 5
  • Power disturbance recording
  • Data memory capable of storing 60,000 mesaured values
  • Triple display allows momentary measured value and up to two additional values are displayed simultaneously
  • Momentary, minimum and maximum measured values
  • Continuity testing with audible signal to indicate connectivity
  • Event counting (number and duration), zero-crossings, stopwatch, and data-compare
  • Capacitance measurement to 300 uF
  • Resistance measurement  to 15 meg ohms
  • Temperature measurement in degrees Fahrenheit or Celsuis
  • Thermocouple measurement capabilibities of Type J and K thermocouples
  • Battery run time, approximately 100 hrs on 2 AA alkalines
  • Low battery indicator automatically displayed if battery voltage drops below 2.3 V
  • Overload Protection, audible sound is employed if upper voltage or current range is exceeded
  • Fuse indicator displays message that the fuse for current measurements needs to be replaced
