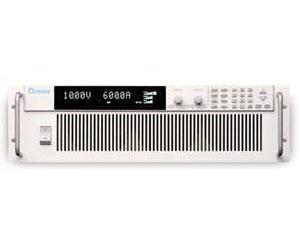

Chroma 6260-40 (6260 Series) Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 62000P Programmable and 62000B Modular DC Power Supplies

See also

Chroma 6260 Series of variable-output, programmable DC power supplies are designed for use in ATE, burn-in, plating, and other high power systems for a broad range of applications.
The 6260 Series of constant voltage, constant current power supplies are available in power ranges within 6KW. All models have 10-turn voltage and current controls that vary the voltage (10V~600V) and current (10A~600A) outputs from zero to the maximum rated values. The action of constant voltage changes to constant current occurs automatically when the load current exceeds the control settings. It also provides an adjustable current limit that allows setting without shortcircuiting the output.
The 6260 Series has user programmable 100 sequential front panel input status for automated test application.
The 6260 Series can be operated easily either from the front panel keypad or from remote controller via GPIB (option), and RS-232 & APG (standard). With a size of 5.22 inch, it is very compact and able to stack easily in a standard rack.

  • 3 phase, 208 VAC input
  • Digital encoder knobs, keypad and function keys
  • Power Factor Correction (0.95)
  • Embedded controller for front panel sequencing
  • Zero voltage soft switching for low noise, high reliability, and high
    efficiency
  • 16-bit digital control with bright vacuum fluorescent display readout,
    bar graphs, and status indicators
  • LabView ® and Labwindows ®
  • Automatic voltage / current mode exchange
  • Constant power mode
  • 10 store / recall locations and 99 step sequencing
  • Remote sense, 5V line loss compensation
  • Current sharing for parallel operation
  • Optional IEEE-488.2 GPIB control with SCPI and RS-232 standard interface
  • OVP, current limit, thermal protection
