Boonton Electronics 4542 (4540 Series) Main Features and Specifications

Product Specs

  • Sensors Peak: 57318, 57518; CW: 51075A
  • Channels 2
  • Freq. Range Low 1 MHz
  • Freq. Range High 110 GHz
  • Computer Interface USB, GPIB, LAN
  • Status -
  • Launch Date Jun-2008

See also

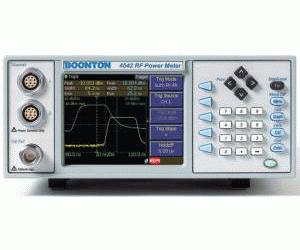

The Boonton model 4540 Series is the instrument of choice for capturing, displaying and analyzing RF power in both the time and statistical domains. Applications include pulsed RF signals such as radar, TDMA and GSM, pseudorandom or noise-like signals such as CDMA, WLAN and WiMAX.

The 4540 Series is a single or dual channel RF Power Meter that can measure modulated or CW signals using peak and average Boonton Power sensors.

The 4540 Series has three operating modes: Pulse, Statistical, and Modulated/CW.

  • High Bandwidth Wide Dynamic Range Sensors
  • Intuitive User Interface
  • 4” color LCD display
  • 200 psec time resolution
  • Statistical analysis including CCDF
  • Text view of 15 time and power measurements per channel
  • GPIB, USB, and LAN
