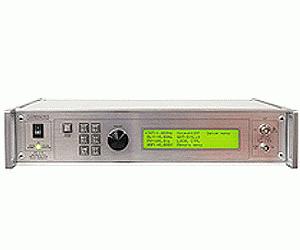

Avtech Electrosystems Ltd. AVPP-2A-B (AVPP Series) Main Features and Specifications

Product Specs

  • Status -

See also

The AVPP series combines AVP and AVMP technology to produce 10 and 20 Volt outputs with variable 0.2 to 1 us pulse widths.

For wide pulse width 20 Volt applications, the AVPP-2A-B provides pulse widths of 0.6 ns to 1 us, with amplitudes to 20V, rise times of 250 ps, and fall times of 350 ps. The maximum repetition rate is 100 kHz, and the maximum duty cycle is 5% (e.g., the maximum pulse width at 100 kHz is 500 ns).

Instruments with the -B suffix include a complete computer control interface. This provides GPIB and RS-232 computercontrol, as well as front panel keypad and adjust knob control of the output pulse parameters.
