Showing Results for Associated Research 620L

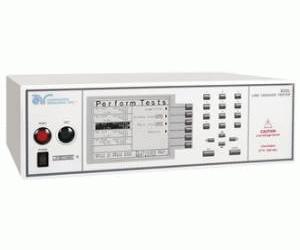

The LINECHEK® II Model 620L is a fully automated Line Leakage tester that can be configured to perform 8 of the most commonly required Line Leakage test. The 620L has the most common measuring devices (MD''s) already incorporated into the instrument. The 620L can also perform patient lead tests with an optional scanner matrix. When configured with an optional Run test feature, the 620L can also monitor minimum and maximum readings for Voltage, Current, Watts , Power Factor, and Leakage Current. It can be configured for use in standalone applications or as part of a test system when interconnect to any Associated Research Hipot or Ground Bond tester. The 620L may also be interconnected with the AC1000 Power source to provide clean power to the DUT and allow for full adjustment of DUT input voltage. For automated control of applied part test points, the 620L may be combined with the SC6540 modular scanning matrix. Lastly, RS-232, GPIB, or Ethernet communication interfaces allow for the automated control of the instrument.

• Performs 8 most common Line Leakage Tests
• Most Common Measuring Devices built-in
• Perform patient lead tests w/ optional scanner
• 50 Memories with 30 steps per memory
• Peak and RMS current measurement
• GPIB, RS-232, Ethernet Interfaces
• Data Storage Card
• Interconnection with any AR Hipot
• Interconnection to AC1000 Power Source
