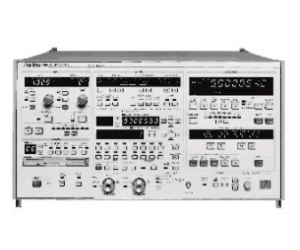

Anritsu MP1764D (Error Detectors) Main Features and Specifications

Product Specs

  • Min. Data Rate 50 Mbps
  • Max. Data Rate 12.5 Gbps
  • Max. PRBS Pattern <br>(2<sup>n</sup>-1) 31
  • Pattern Depth DATA length: 2 to 8388608 bits
  • Max. Clock Rate 12.5 GHz
  • Status Discontinued
  • Alternative MP1800 Series

See also

The MP1764D Error Detector is used in combination with the MP1763C Pulse Pattern Generator for 12.5G Bit Error Rate Testing to evaluate conformity with ITU-T standards. In addition, complicated searching for input thresholds or phase adjustments is simplified with the touch of a single key. These functions are ideally suited for the research and development of ultrahigh speed logic ICs and digital communication systems. This is the only 12.5G BERT system with differential inputs and ¼ differential outputs required for SAN market device applications. In addition, this system supports 4.25G CDR for Fibre Channel applications. MP1764D is a version of the MP1764C 12.5G Error Detector that includes options for Differential Input (option MP1764C-02) and Variable CDR (option MP1764C-03). Features: Wide frequence range covers STM 0/STS1 to 10 GbE, STM64/STS192, OUT-2, and 4.25G Fibre Channel Differential Input option supports high speed differential signals used by XAUI and SFI-4P2 4-lane devices Variable CDR option supports bit rates from 62.5M to 11.1G plus 4.25G for Fibre Channel Burst measurement capability is essential for circulating loop measurements Auto-search function for setting optimum values of input threshold and phase setting by a "one-touch" operation Synchronization of 8 Mbits pattern is easily made within a short period of time (when in frame mode) Errors are detected in intervals as short as 0.1 sec. Zero wait time counter gate
