Showing Results for Anritsu 69153A

2 results found for Anritsu 69153a
Similar models:  Anritsu 69137A  Anritsu 69145A  Anritsu 69147A  Anritsu 69159A  Anritsu 69163A  Anritsu 69169A  Anritsu 69177A  Anritsu 69187A  Anritsu 69197A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Anritsu 69153A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

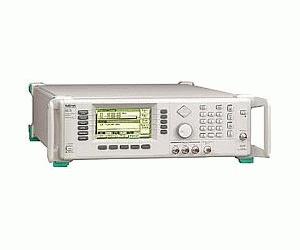

Anritsu 69153A (69A Series) Main Features and Specifications

Product Specs

  • Status Discontinued
  • Launch Date Jan-1999

See also

The 69100A/68100B Synthesized Sweep Generators feature 10 MHz to 65 GHz analog,step and manual sweep capability. Out put levels to +17 dBm and optional 0.1 Hz resolution are available at prices comparable to CW only sources.

The 69300A / 68300B Synthesized sweep/signal generators provide all capabilities of our CW generators, sweep generators and signal generators in a single package

69100A:

  • Ultra-low SSB phase noise; - 100 dBc at 10 KHz offset from 10 GHz
  • 0.01 to 65 GHz frequency coverage in a single coaxial output
  • Waveguide extensions to 110 GHz
  • +17 dBm maximum power, -125 dBm min. power
  • Internal AM,FM, phase and pulse modulation
  • User down-loaded complex modulation
  • Step, analog , power, alternate, master/slave sweep modes
  • User level flatness correction
  • Self-test
  • Secure mode
  • Reset
  • Master/slave operation
  • 360B SS Mode

69153A:

  • Minimum Output Power  -15 dBm
  • Maximum Output Power  9 dBm
  • Power Resolution  0.01 dB
  • Output Accuracy  2 dB
  • Output Level Switching Time  20 ms
  • Output Impedance  50 Ohm
  • Minimum Single-Side-Band Noise  -105 dBc/Hz
  • Maximum Single-Side-Band Noise  -63 dBc/Hz
  • Harmonics (noise)  -40 dBc
  • Non-harmonics (noise)  -40 dBc
