QuadTech HV2 (Meridian) Main Features and Specifications

Product Specs

  • Max. Output DC Voltage 1.5 kV
  • Output DC Current 1A
  • Additional Measurements MSR, 2/4-wire, IR, capacitance, diodes, relays and switches, programmable high current source
  • Status -
  • Launch Date Oct-2008

See also

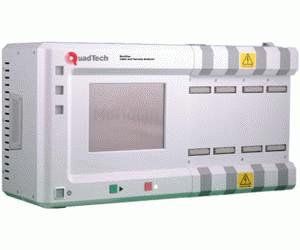

The Meridian is a versatile wire and harness analyzer, and its applications are not limited to just cables. It can be used for testing wires, cables, and harnesses for opens, shorts, miswires and for testing components within a cable or fixture assembly. The Meridian can test up to 1500VDC and 1067VAC and perform opens and shorts detection tests up to 500 wires per second, making testing cables, connectors, harnesses and panels easier than ever before.

  • AC or DC high voltage dielectric breakdown testing of cables
  • Models available with AC & DC breakdown testing in the same unit
  • High Voltage Breakdown to 1500V (HV2)
  • Insulation Resistance to 1.5G?
  • 2-Wire & 4-Wire Resistance Measurement
  • Very accurate measurements of components in cable assemblies
  • Programmable 1A Current Source (optional)
  • 128 Test Points Expandable to 1024 Points
  • Self Learn Known Good Products
  • Flex Test for Intermittent Failures
  • Twisted Pair Verification
  • Resistors, Capacitors, Diodes, Relays, & Switch Testing
  • Built-in PC with Embedded Windows XP Operating System
  • Compact Flash Hard Drive (up to 8GB)
  • SPC and Data Management
  • Test 500 Point Net In Less Than 1 Second
  • Auto Start Test When Product is Loaded
  • Large, Colored LCD Touch-Screen Control for Easy Programming & Testing
