Anritsu S331B/S332B () Main Features and Specifications

Product Specs

  • Status Discontinued

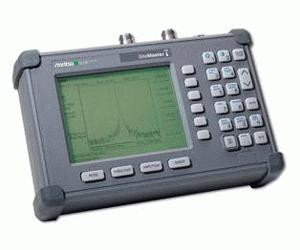

Site Master is the instrument of choice for transmission line/antenna installation and maintenance. It is the best way to reduce maintenance expenses and improve quality. It replaces stacks of heavy, expensive, and complex test equipment. The Site Master frequency domain reflectometry technique allows it to find problems before they become catastrophic faults, thereby creating a huge cost savings.

The Site Master is designed for measuring SWR, return loss, or cable insertion loss and locating faulty RF components in antenna systems. Power monitoring is available as an option. Site Master model S332B includes spectrum analysis capability. The displayed trace can be scaled or enhanced with frequency markers or a limit line. A menu option provides for an audible “beep” when the limit value is exceeded. To permit use in low-light environments, the LCD can be back lit using a front panel key.

Both models include a keypad to enter data and a liquid crystal display (LCD) to provide graphic indications of SWR or RL over the selected frequency range and selected distance. The Site Master is capable of up to 2.5 hours of continuous operation from a fully charged field-replaceable battery and can be operated from a 12.5 dc source. Built-in energy conservation features can be used to extend battery life over an eight-hour work day.

  • Accurate return loss/SWR measurements
  • Accurately tests RF transmission lines and antennas
  • Immunity to live site RF interference
  • Distance-to-fault windowing functions
  • Optional wattmeter
  • Synthesizer accurate to 75 ppm
  • Internal memory saves up to 70 traces
  • Direct printing via RS-232 serial port
  • Remote operation via RS-232 serial port

The following performance specifications are valid when the unit is calibrated at ambient temperature after a five minute warmup.

  • Frequency range: 25 to 3300 MHz
  • Frequency resolution: 100 kHz
  • SWR range: 1.00 to 65.00, resolution 0.01
  • Return loss range: 0.00 to 54.00 dB, resolution 0.01 dB
  • Wattmeter power monitor range: -80.0 to +80 dBm (10.0 pW to 100.0 kW)
  • Test port: Type N, 50 Ω, immunity to interfering signals up to the level of -5 dBm reflection
  • Maximum input (damage level)
    • Test port: +22 dBm
    • RF detector: +20 dBm
  • Cable insertion loss range: 0.00 to 54.00 dB, resolution 0.01 dB
  • Spectrum analyzer (S332B)
    • Frequency range: 100 kHz to 3000 MHz
    • Frequency span: 0 Hz (zero span) 100 kHz to 3000 MHz
    • Sweep time: 0.5 s
    • Resolution bandwidth: 10 kHz, 30 kHz, 100 kHz, 1 MHz
    • Video bandwidth: 3 kHz, 10 kHz, 30 kHz, 300 kHz
    • Spurious residual responses: ≤-95 dBm
    • Amplitude measurement range: -90 dBm to +20 dBm typical
    • Dynamic range: ≥60 dB typical
    • Displayed Average Noise Level: ≤-90 dBm typical
