Showing Results for Keysight Technologies (Agilent HP) N9912A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N9912A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $8381 to $7686 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) N9912A (FieldFox) Main Features and Specifications

Product Specs

  • Low end frequency limit 100 kHz
  • High End Frequency Limit 6 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range DANL to +20 dBm
  • Status -
  • Launch Date Oct-2008

See also

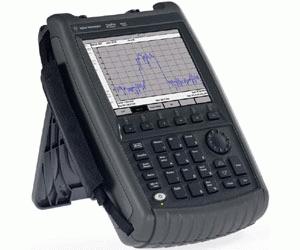

The FieldFox RF Analyzer is the world’s most integrated handheld instrument for wireless network installation and maintenance. It combines cable/antenna analysis, spectrum analysis, power meter measurements and vector network analysis into one rugged, compact, lightweight and weather-resistant package. Standard accessories include AC/DC adapter, battery, soft carrying case, user manual and FieldFox Data Link software.

  • Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
  • Handheld network analyzer (S11, S21, phase, and Smith Chart)
  • Handheld spectrum analyzer, optional preamplifier
  • Interference Analyzer: Spectrogram, waterfall display, record and play back
  • Cable trimming
  • Calibration:
    • Integrated QuickCal allows you to calibrate FieldFox without a calibration kit, providing worry-free accuracy and repeatability
    • Immediate calibration with FieldFox’s CalReady makes the unit calibration ready at the test port immediately following power-up
    • Broadband calibration with automatic interpolation to eliminate re-calibration of FieldFox when the test frequency or the number of points changes
    • Mechanical open, short, load calibration support
