Showing Results for Keysight Technologies (Agilent HP) N1996A-506

2 results found for Agilent hp n1996a 506
Similar models:  Keysight Technologies (Agilent HP) N1996A-503  Keysight Technologies (Agilent HP) N1996A
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N1996A-506 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) N1996A-506 (CSA) Main Features and Specifications

Product Specs

  • Low end frequency limit 100 kHz
  • High End Frequency Limit 6 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 5 MHz
  • Amplitude Range to +33 dBm
  • Status Discontinued
  • Launch Date Dec-2005
  • Alternative N9000A CXA Signal Analyzer

See also

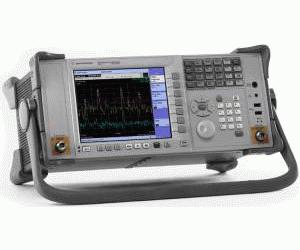

Agilent CSA spectrum analyzer exceptional performance … anytime, anywhere. Best spectrum analyzer dynamic-range, unparalleled ease-of-use, portable for critical measurements anywhere, superior measurement confidence, accelerated measurements through automatic functions.

  • Frequency range: 100 kHz to 6 GHz
  • Stimulus/response suite: 10 MHz to 6 GHz
  • Preamplifier to 6 GHz
  • DANL: -156 dBm, normalized to 1 Hz
  • Best-in-class dynamic range with +18 dBm TOI
  • Overall amplitude accuracy: ±0.5 dB
  • Optional AM/FM modulation analysis
  • Optional AM/FM tune and listen
  • Weight: 7.5 kg with built-in tracking generator, preamplifier, and VSWR bridge
  • Battery life: 2 hours (typical)
  • Brightest, highest resolution display in its class (21cm XGA, 1024 x 768)
  • 24 MHz analysis bandwidth (option available by end of 2006)
  • 1 dB electronic step input attenuator
  • 10% adjustable RBW steps from 10 Hz to 200 kHz, 250 kHz, 300 kHz, 1 MHz, 3 MHz, and 5 MHz
  • USB and LAN standard
