Keysight Technologies (Agilent HP) 8562A (High-performance Portable Spectrum Analyzers) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 22 GHz
  • Resolution Bandwidth Min. 100Hz
  • Resolution Bandwidth Max. 1 MHz
  • Status Discontinued
  • Launch Date Feb-1990
  • Supported until Apr-2000

See also

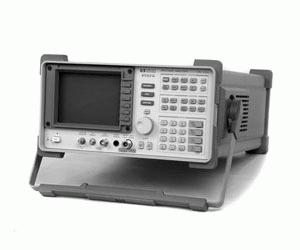

The 8562A portable spectrum analyzer is a high-performance, synthesized technology, lightweight and rugged unit.

  • Frequency 9 kHz - 22 GHz
  • Minimum Span 2.5 kHz
  • Maximum Span 19.25 GHz
  • Minimum Sweep Time 50 ms
  • Maximum Sweep Time 100 s
  • Minimum Resolution Bandwidth 100 Hz
  • Maximum Resolution Bandwidth 1 MHz
  • Resolution Bandwidth Steps 1/3/10
  • Minimum Video Bandwidth 1 Hz
  • Maximum Video Bandwidth 3 MHz
  • Video Bandwidth Steps 1/3/10
  • Minimum Single-Side-Band Noise -100 dBc/Hz
  • Maximum Safe AC Input 1 dBm
  • Maximum DC Input 0 V
  • Minimum Displayed Average Noise -121 dBm
  • Maximum Displayed Average Noise -90 dBm
  • Maximum Dynamic Range 118 dB
  • Maximum Amplitude Uncertainty 3 %
  • Trigger Source External,Internal
  • Demodulation AM,FM
