Showing Results for Keysight Technologies (Agilent HP) 8560EC

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8560EC listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3797 to $2950 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8560EC (8560 EC Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 30Hz
  • High End Frequency Limit 2.9 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range DANL to +30 dBm
  • Status Discontinued
  • Supported until Aug-2014
  • Alternative N9020A-503 MXA Signal Analyzer, 20 Hz to 3.6 GHz, N9030A-503 PXA Signal Analyzer, 3 Hz to 3.6 GHz

See also

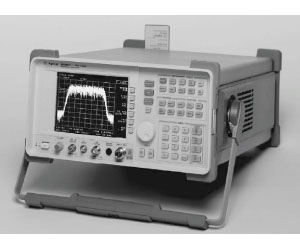

The Agilent 8560EC portable, color display RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
  • Easily transfer screen image or trace data to PC with BenchLink software
