Here you will find a large selection of new and used Rohde & Schwarz FSC6 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz FSC6 () Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 6 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range Display range: Displayed noise floor to +30 dBm
  • Status -

See also

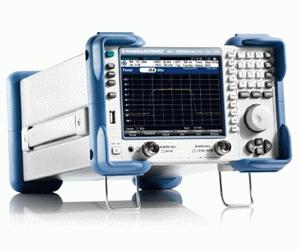

The R&S®FSC is a compact, cost-efficient solution that offers all essential features of a professional spectrum analyzer with Rohde & Schwarz quality. It covers a wide range of applications from simple development tasks to production, or can be used for training RF professionals. Moreover, it is ideal for applications in service or maintenance. The R&S®FSC features a wealth of functions for simplifying and speeding up the development and testing of RF products. Its good RF characteristics and its high measurement accuracy help to ensure reliable and reproducible measurement results.

Four different R&S®FSC models are available in the frequency range from 9 kHz to 3 GHz or 6 GHz. Separate models with tracking generator are available for each frequency range. An optional preamplifier that is available for all models increases sensitivity for measuring weak signals. Owing to its compact design, the R&S®FSC takes up only a minimum of space on a lab bench. When installed in a rack, two R&S®FSC or one R&S®FSC and oneR&S®SMC signal generator situated next to each other fit into the 19” space.

  • Frequency range 9 kHz to 3 GHz or 6 GHz
  • Resolution bandwidths 10 Hz to 3 MHz
  • High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1 Hz ))
  • High third order intercept (> 10 dBm, typ. 15 dBm)
  • Low measurement uncertainty (< 1 dB)
  • Internal tracking generator (model .13/.16)
  • Storage of measurement results on USB stick
  • LAN and USB interface for remote control and transfer of measurement data
  • R&S®FSCView software for simple documentation of measurement results
  • Compact dimensions
  • Low power consumption (12 W)
  • Noise marker for determining the noise power referenced to 1 Hz measurement bandwidth
  • Frequency counter with 0.1 Hz resolution
  • Limit line monitoring (pass/fail function) for indicating whether the DUT complies with defined limits
  • Modulation depth measurement of AM-modulated signals
  • Measurement of harmonics and total harmonic distortion
  • AM/FM audio demodulator (audio via built-in loudspeaker or via headphones)
  • Scalar transmission measurement for fast and simple determination of the transmission characteristics of DUTs such as cables, filters or amplifiers (available for the R&S®FSC models .13 and .16 with tracking generator)
  • Location of EMC problems on printed boards using the R&S®HZ-15 near-field probe set for emission measurements from 30 MHz to 3 GHz
  • Field-strength measurements taking into account the specific antenna factors of the connected antenna, the field strength being displayed directly in dBμV/m
  • Power measurement on pulsed signals in the time domain with predefined settings for the GSM and EDGE mobile radio standards
  • Channel power measurement in a definable transmission channel with predefined settings for 3GPP WCDMA, cdmaOne, CDMA2000® and LTE mobile communications standards
  • Measurement of occupied bandwidth (OBW)
  • Adjacent channel power, absolute or referenced to the TX carrier for up to 12 channels and 12 adjacent channels
  • Gated sweep for displaying the modulation spectrum of burst signals such as GSM or WLAN
  • Measurement of spurious emissions
