Showing Results for Keysight Technologies (Agilent HP) 8591EM

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8591EM listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

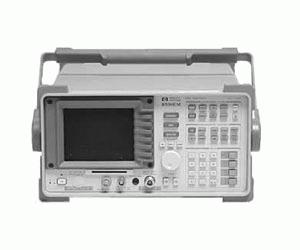

Keysight Technologies (Agilent HP) 8591EM (8590 Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 1.8 GHz
  • Resolution Bandwidth Min. 30Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range Displayed average noise level to + 137 dBµV
  • Status Discontinued
  • Supported until Nov-2005
  • Alternative E7400A Series EMC Spectrum Analyzers

See also

The Agilent 8591EM has two modes of operation: EMI analysis and spectrum analysis. With the press of a key, this analyzer converts from EMC analyzer to full-function spectrum analyzer for use in a wide variety of non-EMC applications.

  • Setup keys link predefined CISPR bands with correct video and CISPR resolution bandwidths
  • Built-in amplitude correction automatically corrects for antenna, amplifier, and cable losses
  • Limit-line displays simultaneously compare device signals with up to two regulatory limits and a specified measurement margin
  • Predefined routines automatically measure all signals over a specified frequency range
  • Measure, store, and report up to 239 signals automatically
  • Frequency range 9 KHz - 1.8 GHz
  • Sweep time 20 ms - 100 s
  • Resolution bandwidth 30 Hz - 3 MHz
  • Single-Side-Band Noise  -105 dBc/Hz - 90 dBc/Hz
  • Displayed average noise -130 dBm - 113 dBm
