Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 3585A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3950 to $1795 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

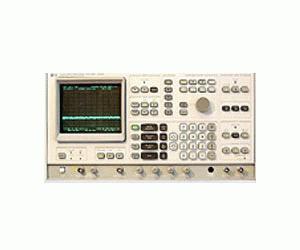

Keysight Technologies (Agilent HP) 3585A () Main Features and Specifications

Product Specs

  • Low end frequency limit 20Hz
  • High End Frequency Limit 40.1 MHz
  • Resolution Bandwidth Min. 3Hz
  • Resolution Bandwidth Max. 30 kHz
  • Amplitude Range -137 dBm to +30 dBm
  • Status Discontinued
  • Supported until Nov-1996

The 3585A provides outstanding low frequency performance from 20Hz to 40.1MHz.

  • Overall measurement accuracy is maintained within 0.4 dB by an internal calibration routine, performed by an internal microprocessor.
  • Frequency Span range includes the entire frequency range with 0.1Hz resolution.
  • Resolution Bandwidths of 3Hz to 30kHz in 1-3-10 sequence.
  • Amplitude Measurement range from -137 dBm to +30 dBm (50 or 75 ohms) or 31 nV to 22 V (1 Mohm).
  • A dynamic range of better than -80 dB.
  • The built-in tracking generator provides output levels from 0 dBm to -11 dBm with a single turn knob.
