Here you will find a large selection of new and used Advantest U3771 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

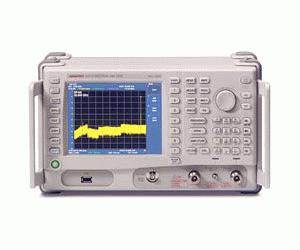

Advantest U3771 (U3700 Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 32 GHz
  • Resolution Bandwidth Min. 100Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range +30 dBm - -123 dBm
  • Status -
  • Launch Date Jul-2005

See also

The world’s smallest, lightest, battery-powered field-use microwave spectrum analyzer is now available.

  • Frequency range: 9 kHz to 31.8/43 GHz (U3771/3772)
  • High input sensitivity: –117 dBm@34 GHz
  • Battery, DC or AC powered
  • Highest level measurement accuracy in its class
  • Supports USB memory and printers
  • Includes a wide variety of data analysis functions
  • Dynamic Range +30 dBm - -123 dBm
  • Residual FM <=60Hzp- p x N/100ms
  • Resolution Bandwidth 100 Hz - 3 MHz
  • Video Bandwidth 10 Hz - 3 MHz
  • Input Impedance 50 ohms
  • Options
    • Opt 10: 2 Channel Input (50 Ω, 3 GHz)
    • Opt 11: 2 Channel Input (75 Ω, 2.2 GHz)
    • Opt 15: 1 Channel Input (75 Ω)
    • Opt 20: High_Stability Frequency Reference Source
    • Opt 28: EMC Filter
    • Opt 53: Time-Domain Analysis (1 ch)
    • Opt 54: Time-Domain Analysis (2 ch)
    • Opt 55: Wide-Band Time-Domain Analysis (1 ch)
    • Opt 70: High-Purity Spectrum Analysis (Resolution Bandwidth 30 Hz to 1 / 3 MHz - U3741 / U3751)
    • Opt 75: Tracking Generator (75 Ω, 2.2 GHz)
    • Opt 76: Tracking Generator (50 Ω, 3 GHz)
    • Opt 77: Tracking Generator (50 Ω, 6 GHz)

Get Price Quotes

Advantest U3771/20 RF2 Cal error
  • $6,000
    • In Stock
