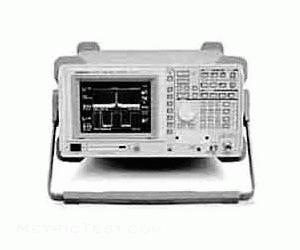

Advantest R3365 (Microwave EMI Adapted Spectrum Analyzers ) Main Features and Specifications

Product Specs

  • Low end frequency limit 100Hz
  • High End Frequency Limit 8 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 3 MHz
  • Status Discontinued
  • Minimum Span 200 Hz
  • Maximum Span 8 GHz
  • Minimum Sweep Time 50 us
  • Maximum Sweep Time 1000 s
  • Minimum Resolution Bandwidth 10 Hz
  • Maximum Resolution Bandwidth 3 MHz
  • Resolution Bandwidth Steps 1/3/10
  • Minimum Video Bandwidth 1 Hz
  • Maximum Video Bandwidth 3 MHz
  • Video Bandwidth Steps 1/3/10
  • Minimum Single-Side-Band Noise -110 dBc/Hz
  • Maximum Single-Side-Band Noise -95 dBc/Hz
  • Minimum Displayed Average Noise -135 dBm
  • Maximum Displayed Average Noise -100 dBm
  • Maximum Dynamic Range 1 dB
  • Maximum Amplitude Uncertainty 5 %
  • Trigger Source External,Internal
  • Trigger Modes Freerun,TTL
  • Demodulation AM,FM
  • Gated sweep Function Delayed sweep
  • Fast digitized sweep
  • Memory card Function
