Keysight Technologies (Agilent HP) E9326A () Main Features and Specifications

Product Specs

  • Status -

See also

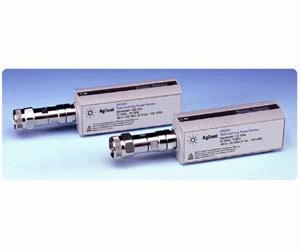

The E9326A power sensor has a 1.5 MHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA and CDMA wireless formats such as Bluetooth.

  • 1.5 MHz video bandwidth, ideal for Bluetooth® and cdmaOne applications
  • 50 MHz to 18 GHz frequency range
  • Provides peak and average power measurements
  • Power range
    • Average only mode: -60 dBm to +20 dBm
    • Normal mode: -45 dBm to +20 dBm
  • Maximum power: +23 dBm average; +30 dBm peak
  • Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
  • Wide dynamic range
  • Maximum SWR at 50 MHz to 2 GHz is 1.12
  • Zero drift
    • Normal mode: <±5 nW
    • Average only mode: <±100 pW
  • Measurement noise
    • Normal mode in free run acquisition mode: <12 nW
    • Average only mode: <330 pW
  • Rise/fall time at high video bandwidth setting: <0.4 µs
  • Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
  • Precision type-N connector as standard
  • Operates with the EPM-P series and P-Series power meters
