Showing Results for Keysight Technologies (Agilent HP) E9325A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) E9325A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3583 to $2000 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) E9325A () Main Features and Specifications

Product Specs

  • Status -

See also

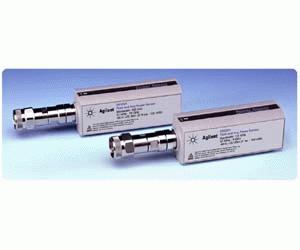

The E9325A power sensor has a 300 kHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA wireless formats such as NADC, GSM and EDGE.

  • 300 kHz video bandwidth, ideal for GSM, EDGE, and NADC applications
  • 50 MHz to 18 GHz frequency range
  • Provides peak and average power measurements
  • Power range
    • Average only mode: -65 dBm to +20 dBm
    • Normal mode: -50 dBm to +20 dBm
  • Maximum power: +23 dBm average; +30 dBm peak
  • Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
  • Wide dynamic range
  • Maximum SWR at 50 MHz to 2 GHz is 1.12
  • Zero drift
    • Normal mode: <±5 nW
    • Average only mode: <±60 pW
  • Measurement noise
    • Normal mode in free run acquisition mode: <6 nW
    • Average only mode: <165 pW
  • Rise/fall time at high video bandwidth setting: <0.9 µs
  • Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
  • Precision type-N connector as standard
  • Operates with the EPM-P series and P-Series power meters
