Keysight Technologies (Agilent HP) E9321A () Main Features and Specifications

Product Specs

  • Status -

See also

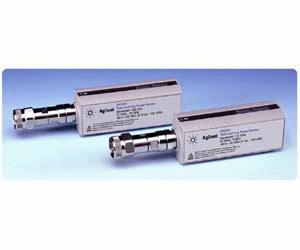

The E9321A power sensor has a 300 kHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA wireless formats such as NADC, GSM and EDGE.

  • 300 kHz video bandwidth, ideal for GSM, EDGE, and NADC applications
  • 50 MHz to 6 GHz frequency range
  • Provides peak and average power measurements
  • Power range
    • Average only mode: -65 dBm to +20 dBm
    • Normal mode: -50 dBm to +20 dBm
  • Maximum power: +23 dBm average; +30 dBm peak
  • Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
  • Wide dynamic range
  • Maximum SWR at 50 MHz to 2 GHz is 1.12
  • Zero drift
    • Normal mode: <±5 nW
    • Average only mode: <±60 pW
  • Measurement noise
    • Normal mode in free run acquisition mode: <6 nW
    • Average only mode: <165 pW
  • Rise/fall time at high video bandwidth setting: <0.9 µs
  • Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
  • Precision type-N connector as standard
  • Operates with the EPM-P series and P-Series power meters
