Fluke 80i-110S () Main Features and Specifications

Product Specs

  • Status -

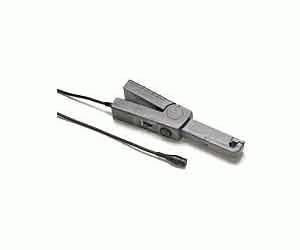

The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

  • Current Range: 0.1 to 100A DC or 0.1 to 70A AC
  • Basic Accuracy (DC to 1kHz):
    • 100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
    • 10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
    • 40A to 80A +/- 12% of reading + 50mA
    • 80 to 100A +/- 15% of reading
  • Maximum Non-Destructive Current: 140 A - 2 kHz
  • Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
  • Bandwidth: 1Hz to 20kHz
  • Working Voltage: 600V AC rms
  • Maximum Conductor Size: 11.8 mm (.46 inch) diameter
  • Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V

Get Price Quotes

Fluke 80i110s Opts: no options
  • €498
