Here you will find a large selection of new and used Tektronix PS2521G listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Tektronix PS2521G (Programmable Power Supplies) Main Features and Specifications

Product Specs

  • Status Discontinued

See also

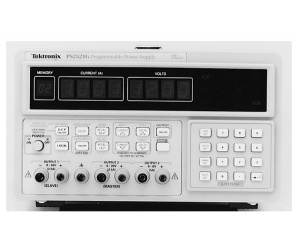

The triple output PS2520G and PS2521G Power Supplies are versatile supplies suitable for many applications. The PS2520G has a single supply providing a maximum of 6 V and 3 A and two supplies providing a maximum of 36 V and 1.5 A. The PS2521G has a single supply providing a maximum of 6 V and 5.0 A and two supplies providing a maximum of 20 V and 2.5 A.

The supplies can be operated in one of three modes: independent, series or parallel. In the independent mode, the output voltage and current of each supply are controlled independently. In the two tracking modes, the variable outputs are connected either in series or in parallel; the controls of the master power supply adjust the voltage or current of both power supplies.

The PS2520G and PS2521G are GPIB programmable. The GPIB command sets are SCPI compatible.

Each power supply features 100 memories to store voltage and current limits for instant recall via the front panel or GPIB. Both have a dual 4-digit LED display.

  • Triple Output
  • One 0 to 6 V, 0 to 5 A
  • Two 0 to 20 V, 0 to 2.5 A
  • Digital LED Output Indicator
  • SCPI Compatible
  • One Year Warranty
