Tektronix 1101A () Main Features and Specifications

Product Specs

  • Status Discontinued

See also

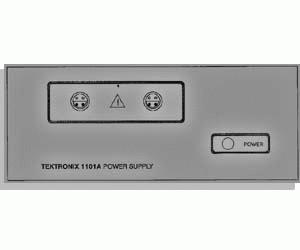

The Tektronix 1101A Accessory Power Supply provides external power to accessories and probes when the oscilloscope or similar instrument does not have the capability to do so.

The 1101A can operate at either 115 VAC or 230 VAC nominal voltage. Optional power cords are available to provide compatibility with different power source connections. The power supply has overload protection. It has a power switch on the rear panel and a power indicator on the front panel.

The 1101A has two front panel power receptacles that will power up to two independent probes, such as the Tektronix P6201, P6202A, or P6230. The 1101A provides +5 VDC, +15 VDC, and -15 VDC at the probe connectors.

  • Output voltage: +15 VDC, -15 VDC, +5 VDC, -5 VDC, accuracy ±2%
  • Output current: 300 mA
  • Line voltage: Low range 87 VAC to 128 VAC, high range 174 VAC to 250 VAC
  • Line frequency: 48 to 440 Hz
  • Power consumption: 35 W
  • Line fuse:
    • Low range (115 VAC): 250 V, 0.4 A T/SB
    • High range (230 VAC): 250 V, 0.20 A T/SB
  • Output configuration: Lemo-type connector
    • Pin 1, +5 VDC
    • Pin 2: Common
    • Pin 3: +15 VDC
    • Pin 4: -15 VDC

Get Price Quotes

Tektronix 1101A Opts: no option
  • €198
