Here you will find a large selection of new and used Stanford Research Systems PS310 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Stanford Research Systems PS310 (PS300 Series) Main Features and Specifications

Product Specs

  • Status -

See also

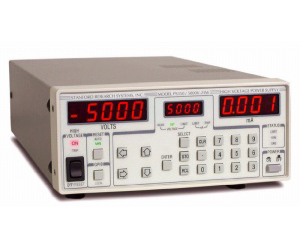

The PS300 High Voltage Power Supply series consists of three efficient, microprocessor-controlled, switching DC power supplies capable of delivering 25 W of output power at voltages up to 5 kV. All models have 0.001 % regulation and 0.05 % accuracy, and the output voltage can be adjusted with 1 V resolution over the entire operating range.

All PS300 series supplies have rear-panel SHV connectors. Optional cables allow connection with standard high-voltage connectors (SHV or MHV). A three-position, high-voltage enable switch on the front panel prevents the high voltage from being turned on under computer control unless the switch has been manually armed. A highly visible red LED always indicates when the high voltage is on. Convenient front-panel LED displays indicate both the voltage and current delivered to the load at all times.

  • 5 kV, 2.5 kV, 1.25 kV supplies
  • 25 W output power
  • 1 volt resolution
  • 0.001 % regulation, 0.05 % accuracy
  • Dual polarity
  • Programmable limits and trips
  • 0.0015 % ripple
  • Voltage and current monitors
  • Stored settings
  • GPIB interface (opt.)
