Keysight Technologies (Agilent HP) E36313A (E36300 Series) Main Features and Specifications

Product Specs

  • Number of Outputs Triple
  • Max. Voltage 25V
  • Max. Current 10A
  • Ripple and Noise 20 Hz to 20 MHz
  • Computer Interface GPIB,RS-232,USB
  • Status -
  • Launch Date Jun-2017

See also

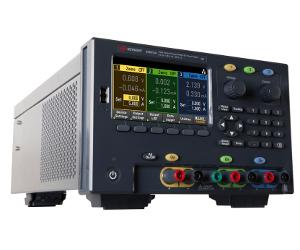

Keysight basic DC power supplies offer essential features for a tight budget. The triple output, 160 W, E36313A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with USB and LAN, and optional GPIB interfaces. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.

  • 160W output
  • More confidence to power your design with excellent accuracy in programming and readback, excellent load and line regulation and low ripple and noise
  • More convenient and productive with intuitive and easy-to-use front-panel interface
    • 4.3-inch LCD color display to show the voltage and current of all three channels at the same time
    • Color-coded channel to simplify manual set-up
    • Two individual knobs for voltage and current with rotary encoder control for precise setting
  • More test throughput via LAN/LXI, USB and GPIB (optional) connectivity and support SCPI programming with transient response faster than 50 µs
  • More protection for your device under test (DUT) with OVP, OCP, OTP, keypad locking and physical lock mechanism
  • More features – Low range current measurement, Data logging, Output sequencing, Output LIST, auto-series/parallel connections, remote sensing, digital I/O port and rear connections
  • Less cost and saves space with outputs that can be independently turned on and off
