Keysight Technologies (Agilent HP) 66312A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 66332A 100 Watt Dynamic Measurement DC Source, 20V, 5A

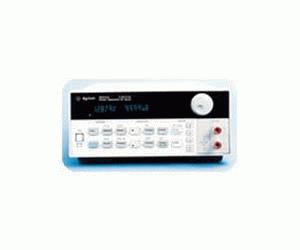

The Agilent 66312A 40 watt, dynamic measurement dc source provides dynamic measurement and analysis of voltage and current waveforms. It is ideal for testing digital wireless communications products/components because it not only provides the power for testing, but also performs the peak current measurements required to characterize the pulsed current demands of these products.

The 66312A combines two instruments in one unit. It includes a dc source, which produces dc output with programmable voltage and current amplitude, and a highly accurate voltage and current meter, with the capability to measure very low-level currents. Additionally, the 66312A has the ability to measure and characterize output voltage and current of pulse or ac waveforms.

  • Output Voltage and Current control with 12-bit programming resolution
  • Extensive measurement capability
    • dc voltage and current
    • rms and peak voltage and current
    • 16-bit measurement resolution (low range accurate down to 2 microamperes)
    • Triggered acquisition of digitized current and voltage waveforms
  • Easy to use knob for voltage and current settings, front panel control with 14-character vacuum fluorescent display, and keypad
  • Highly visible vacuum-fluorescent front panel display
  • Output ratings: 0 - 20 V, 0 - 2 A
  • Excellent load and line regulation; low ripple and noise
    • Ripple and noise: 0.5 mVrms, 3 mVp-p, 1 mArms
    • Load regulation: 2 mV, 0.5 mA
    • Line regulation: 0.5 mV, 0.5 mA
  • Transient response time: <100 µs
  • Maximum current measurement: 2.43 A
  • Measurement capability down to microampere levels
  • Current sinking up to 30% of the rated current
  • Drift: 0.5 mV, 20 µA
  • Output voltage fall/rise time: 2 ms
  • Output voltage settling time: 6 ms
  • Measurement time: 50 ms average
  • Command processing time: 4 ms average
  • Instrument state storage
  • Triggered acquisition of digitized output current and voltage waveforms
  • I/O setup easily done from the front panel
  • Over-voltage, over-current, over-temperature, and RI/DFI protection features
  • Extensive selftest, status reporting, and software calibration
  • Portable case
  • GPIB (IEEE-488) and RS-232 interfaces are standard
  • SCPI (Standard Commands for Programmable Instruments) compatibility
