Keysight Technologies (Agilent HP) 41421B () Main Features and Specifications

Product Specs

  • Status Discontinued

See also

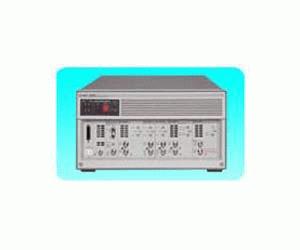

The HP 41421B Source/Monitor Unit (Medium Power SMU: MPSMU) is a plug-in unit for the 4142B Modular DC Source/Monitor. The 4142B can force and measure up to +/-100 V or +/-100 mA (maximum power: 2 W).
The SMU functions in either of the following two modes:

  • V source (constant or pulse) and I monitor
  • I source (constant or pulse) and V monitor

In High speed spot measurements, Analog search measurements, and Quasi-pulsed spot measurements, the SMU functions in the following two modes in addition to the above two modes:

  • V source (constant only) and V monitor
  • I source (constant only) and I monitor

The SMU includes a compliance feature that limits output or current to prevent damage to your device. When the SMU forces voltage, you can specify I compliance. When the SMU forces current, you can specify V compliance. You can specify V or I compliance with the same resolution as the output voltage or current within the maximum output.

  • Measurement ranges: Maximum outputs
    • 2 V: +/-100 mA
    • 20 V: +/-100 mA
    • 40 V: +/-50 mA
    • 100 V: +/-20 mA
    • 1 nA - 10 mA: +/-100 V
    • 100 mA: +/-100 V, +/-40 V, +/-20 V
  • Pulse parameters (Note: For current pulse, the pulse base current and pulse current must have the same polarity.)
    • Pulse width: 1 ms to 50 ms, 100 microsec resolution
    • Pulse period: 10 ms to 500 ms, 100 microsec resolution
    • Maximum pulse duty (pulse width / pulse period): 50%
    • 2 V output range: 10 nA to 1 A measurement range
    • 20 V to 200 V output range: 100 microA to 1 A measurement range
    • 10 nA to 10 microA output range: 2 V measurement range
    • 100 microA to 1 A output range: 2 V to 200 V measurement range
