Showing Results for Keysight Technologies (Agilent HP) 66000 Series - 150W Modules

46 results found for Agilent hp 66000 series 150w modules
Similar models:  Keysight Technologies (Agilent HP) 66000 Series - 150W Mainframe
Showing page 2 of about 2 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 66000 Series - 150W Modules listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1620 to $1128 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

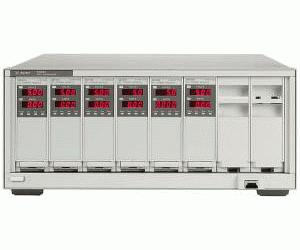

Keysight Technologies (Agilent HP) 66000 Series - 150W Modules (66000 Series) Main Features and Specifications

Product Specs

  • Number of Outputs Modular
  • Max. Voltage 200V
  • Max. Current 20A
  • Ripple and Noise 2.0 mVrms
  • Computer Interface GPIB
  • Status -

See also

 The 66000 Series includes the following modular outputs:

  • 66101A - 66106A
  • 66101A-J03
  • 66101A-J05
  • 66103A-J12
  • 66103A-J09
  • 66103A-J01
  • 66103A-J02
  • 66104A-J09
  • 66105A-J01

Meet changing requirements in ATE and production test with up to eight easily swappable modules per mainframe. The modular design conserves rack space and simplifies system cabling and assembly.

  • Modular system permits up to 8 outputs of 150 W per output in 4 U of rack space
  • Simplify reconfiguration, calibration, or repair with modules that remove from the front without disconnecting DUT wiring
  • GPIB interface with SCPI command set, drivers available
  • Serial link system enables control of multiple power supplies from one GPIB address
  • Simplify system cabling when isolation or reverse voltage is needed using optional built-in open/close/polarity reversal relays
  • Advanced hardware and software triggering system to allow synchronization to other events in your ATE system
  • Simplify cabling with built-in measurements
  • Streamline tasks with optional keyboard for manual control and advanced programmable features including automated sequencing of up to 20 output setting steps
  • Ensure DUT safety with protection features
