Here you will find a large selection of new and used Tektronix MSO3032 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $6000 to $3270 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

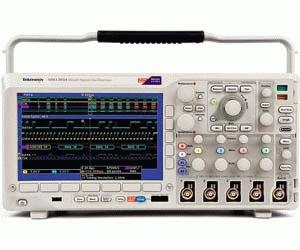

Tektronix MSO3032 (MSO3000 Series) Main Features and Specifications

Product Specs

  • Type Benchtop Portable
  • Bandwidth 300 MHz
  • Scope Channels 2
  • Digital Channels 16
  • Memory Depth 5 Mpt record length on all channels
  • Sample Rate 2.5 GSa/sec
  • Status -
  • Launch Date Jun-2009

See also

With up to 500 MHz bandwidth and 2.5 GS/s sample rate, the MSO/DPO3000 Mixed Signal Oscilloscope Series provides the performance you need for many of the mainstream applications of today. With as many as 20 channels, you can analyze analog and digital signals with a single instrument. Combine that with automated serial and parallel bus analysis, innovative Wave Inspector® controls, and automated power measurements, and the MSO/DPO3000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.

  • 500, 300, 100 MHz Bandwidth Models
  • 2 and 4 Analog Channel Models
  • 16 Digital Channels (MSO Series)
  • 2.5 GS/s Sample Rate on All Channels
  • 5 Megapoint Record Length on All Channels
  • >50,000 wfm/s Maximum Waveform Capture Rate
  • Suite of Advanced Triggers
  • Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
  • 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 9 inch (229 mm) WVGA Widescreen Color Display
  • Small Footprint and Lightweight – Only 5.8 inches (147 mm) deep and 9 pounds (4 kg)
  • USB 2.0 Host Port on both the Front Panel and Rear Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Integrated 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector
  • Automated Serial Triggering, Decode, and Search Options for I2C, SPI, CAN, LIN, RS-232/422/485/UART, and I2S/LJ/RJ/TDM
  • Automated Triggering, Decode, and Search on Parallel Buses
  • Multichannel Setup and Hold Triggering
  • MagniVu™ High-speed Acquisition Provides 121.2 ps Fine Timing Resolution on Digital Channels
  • Optional Power Analysis
  • Optional HDTV and Custom Video Analysis
