Here you will find a large selection of new and used Tektronix MDO3024 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $8860 to $3490 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

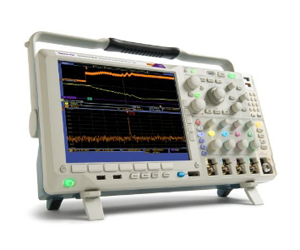

Tektronix MDO3024 (MDO3000 Mixed Domain Oscilloscope Series) Main Features and Specifications

Product Specs

  • Type Benchtop Portable
  • Bandwidth 200 MHz
  • Scope Channels 4
  • Digital Channels 4
  • Memory Depth 10 Mpoints Record Length
  • Sample Rate 2.5 GSa/sec
  • Status -
  • Launch Date Feb-2014

Today's integrated designs need an oscilloscope that is just as integrated - such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now - or later.

MDO3024 specifications:

  • Analog channels: 4
  • Analog channel bandwidth: 200 MHz
  • Rise time (typical, calculated): 2 ns
  • Sample rate: 2.5 GS/s
  • Record length: 10 M
  • Digital channels with MDO3MSO option: 16
  • 1 RF channel: 9 kHz - 200 MHz (up to 3 GHz optional)
  • Arbitrary Function Generator outputs with MDO3AFG option: 1
  • Spectrum analyzer channels: 1
  • Standard spectrum analyzer frequency range: 9 kHz - 200 MHz
  • Optional spectrum analyzer frequency range with MDO3SA option: 9 kHz - 3 GHz
  • Vertical system analog channels:
    • Hardware bandwidth limits: 20 MHz
    • Input coupling: AC, DC
    • Vertical resolution: 8 bits (11 bits with Hi Res)
  • Vertical system digital channels (with MDO3MSO option)
    • Input channels: 16 digital
    • Threshold selections: TTL, CMOS, ECL, PECL, User-defined
    • User-defined threshold range:  -15 V to +25 V
    • Maximum input voltage:  -20 V to +30 V
    • Minimum voltage swing: 500 mV
    • Input resistance: 101 kΩ
    • Probe loading: 8 pF
    • Vertical resolution: 1 bit
  • Horizontal system analog channels
    • Time base range: 1 ns/div to 1000 s/div
    • Maximum duration at highest sample rate: 4 ms
    • Channel-to-channel deskew range: ±125 ns
  • Horizontal system digital channels (with MDO3MSO option)
    • Maximum sample rate (Main): 500 MS/s (2 ns resolution)
    • Maximum record length (Main): 10 M
    • Maximum sample rate (MagniVu): 8.25 GS/s (121.2 ps resolution)
    • Maximum record length (MagniVu): 10k centered on the trigger
    • Minimum detectable pulse width (typical): 2 ns
    • Channel-to-channel skew (typical): 500 ps

MDO3000 general features and specifications:

  • Mixed Domain Oscilloscope – integrated spectrum analyzer: Every model comes standard with an integrated spectrum analyzer, enabling you to analyze RF signals up to the rated bandwidth of the scope. Option MDO3SA extends the spectrum analyzer frequency coverage to 3 GHz
  • Wave Inspector® Navigation: Dedicated front panel controls enable easy zoom and navigation through 10 Mpoint records. Automated search capability quickly finds and marks every occurrence of user specified events
  • Integrated, upgradable arbitrary / function generator: The function generator saves bench space and enables closed loop testing by simulating sensors or unfinished system blocks. Capture real signals and replicate them as arbitrary waveforms up to 128k points long, with a single instrument
  • Integrated, upgradable logic analyzer: Enables debug of digital portions of embedded designs. Trace system timing issues with broader system visibility
  • Serial and parallel bus triggering and analysis: Quickly debug your parallel bus and/or common serial buses with automated trigger, decode and search
  • Integrated digital voltmeter and frequency counter: Free with product registration! Enables quick measurements of DC voltage, AC+DC RMS, AC RMS and frequency
  • Incredibly small form factor: Saves valuable bench space by integrating a spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer and DVM/counter into your debug tool of choice – the oscilloscope. Only 5.8 inches deep and 9 lbs yet it still provides a 9” WVGA display
  • Upgradeability: Don’t know what you’ll be working on next year? Upgrades are available to analog bandwidth, spectrum analyzer frequency range, arbitrary function generator, digital channels (MSO), serial trigger and analysis packages, and more – ensuring usefulness for years to come
  • Oscilloscope
    • 2 and 4 analog channel models
    • 1 GHz, 500 MHz, 350 MHz, 200 MHz, 100 MHz bandwidth models
    • Bandwidth is upgradable (up to 1 GHz)
    • Up to 5 GS/s sample rate
    • 10 M record length on all channels
    • >280,000 wfm/s maximum waveform capture rate
    • Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz, 500 MHz, or 250 MHz analog bandwidth
  • Spectrum Analyzer
    • Frequency range
      • Standard: 9 kHz - oscilloscope bandwidth
      • Optional: 9 kHz - 3 GHz
    • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (Optional)
    • 13 predefined waveform types
    • 50 MHz waveform generation
    • 128 k arbitrary generator record length
    • 250 MS/s arbitrary generator sample rate
  • Logic Analyzer (Optional)
    • 16 digital channels
    • 10 M record length on all channels
    • 121.2 ps timing resolution
  • Protocol Analyzer (Optional): Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, LIN, FlexRay, MIL-STD-1553, and Audio standards
  • Digital Voltmeter (Free with product registration)
    • 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
    • 5-digit frequency measurements
