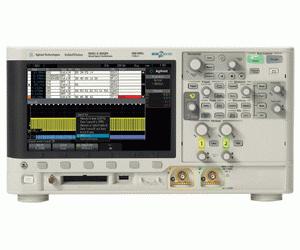

Showing Results for Keysight Technologies (Agilent HP) MSOX3012A

The Agilent InfiniiVision MSOX3012A is engineered to deliver value, functionality, and flexibility at prices that fit into your existing budgets. This 2-channel model in the InfiniiVision 3000 X-Series, with 1,000,000 waveforms/sec, gives you superior performance and functionality today, and the ability to upgrade capabilities, such as serial measurement applications, in the future.

Digital content is everywhere in the designs of today and traditional two and four channel oscilloscopes do not always provide enough channels for the job at hand. With an additional 16 integrated digital timing channels, you now have up to 20 channels of time-correlated triggering, acquisition, and viewing on the same instrument.

• Largest screen in its class: 8.5-inch WVGA display
• Fastest update rate of 1,000,000 waveforms per second
• Deepest memory: 4 Mpts (Optional, 2 Mpts interleaved standard)
• Best-in-class oscilloscope
• Integrated logic timing analyzer
• Built-in 20-MHz function generator: WaveGen
• Hardware-based protocol analyzer
• Localized GUI and help
• 33 automated measurements, nine parametric triggers, six serial protocol triggers, as well as seven waveform math functions, including FFT
• Autoscale button for automatically setting the vertical, horizontal, and trigger controls for optimal viewing (can be disabled or enabled)
• Optional serial protocol analysis applications including: I²C, SPI, RS232, UART, CAN, LIN, and I²S
• Segmented memory: Segmented memory acquisition lets you selectively capture and store important segments of signals without capturing unimportant signal idle/deadtime
• Mask Testing: Hardware-based mask testing can perform up to 280,000 tests per second
• Reference waveforms: Store up to two waveforms in the non-volatile reference waveform memory locations, for comparing with live waveforms, and performing post analysis
• Connectivity: Operate the scope from a PC and save and recall waveforms as well as set-up files via LAN. Built-in USB host (one front, one rear), and USB device ports,  an optional LAN/VGA module, and an optional GPIB module. Only one module can be used at a time
• Bandwidth upgradeable after purchase

Performance characteristics of the MSOX3012A:

• Analog bandwidth (-3dB ): 100 MHz
• Analog input channels: 2
• Calculated rise time: ≤ 3.5 ns
• Time base range: 5 ns/div to 50 s/div

Performance characteristics of all 3000 X-Series models:

• Hardware bandwidth limits: 20 MHz selectable
• Input coupling: AC, DC, GND
• Input impedance: Selectable 1 MΩ ± 1%; 50 Ω ± 1.5%
• Input sensitivity range: 2 mV/div to 5 V/div
• Sample rate on each channel: 2 GSa/s per channel; 4 GSa/s half-channel interleaved
• Maximum record length: Standard, 1 Mpt per channel, 2 Mpts half-channel interleaved; With option, 2 Mpts per channel, 4 Mpts half-channel interleaved
• Maximum duration of time captured at highest sample rate (all channels): 1 ms
• Display: 8.5-inch WVGA with 64 levels of intensity grading
• Waveform update rate (max): 1,000,000 waveforms/s
• Vertical resolution: 8 bits
• Horizontal resolution: 2.5 ps
• Time base delay time range
  • Pre-trigger – Greater of 1 screen width or 250 μs
  • Post-trigger – 1 s to 500 s
• Channel-to-channel deskew range: ± 100 ns
• Channel-to-channel isolation: > 100:1 from DC to maximum specified bandwidth of each model (measured with same V/div and coupling on channels)
• Offset range: ±2 V (2 mV/div to 200 mV/div), ±50 V (> 200 mV/div to 5 V/div)
• Vertical system digital channels
  • Digital input channels: 16 digital (D0 to D15)
  • Thresholds: Threshold per set of 8 channels
  • Threshold selections: TTL (+1.4 V), 5 V CMOS (+2.5 V), ECL (–1.3 V), User-definable (selectable by pod)
  • User-defined threshold range: ±8.0 V in 10 mV steps
  • Maximum input voltage: ±40 V peak CAT I; transient overvoltage 800 Vpk
  • Maximum input dynamic range: ±10 V about threshold
  • Minimum voltage swing: 500 mVpp
  • Input impedance: 100 kΩ ±2% at probe tip
  • Probe loading: ~8 pF
  • Vertical resolution: 1 bit
• Horizontal system digital channels
  • Maximum sample rate: 1 GSa/s
  • Maximum record length: 2 Mpts (digital only), 500 kpts (analog and digital channels)
  • Minimum detectable pulse width: 5 ns
  • Channel-to-channel skew: 2 ns (typical); 3 ns (maximum)
• Acquisition modes
  • Normal
  • Peak detect: Capture glitch as narrow as 250 ps at all timebase settings
  • Averaging: Select from 2, 4, 8, 16, 64, up to 65,536
  • High resolution mode: 12 bits of resolution when ≥ 10 μs/div at 4 GSa/s or ≥20 μs/div at 2 GSa/s
  • Segmented (optional): Re-arm time= 1 μs (minimum time between trigger events)
• Trigger modes
  • Normal (triggered): requires trigger event for scope to trigger
  • Auto: triggers automatically in absence of trigger event
  • Single: triggers only once on a trigger event, press [Single] again for scope to find another trigger event, or press [Run] to trigger continuously in either Auto or Normal mode
  • Force: front panel button that forces a trigger
•  Trigger level range
  • Any channel: ± 6 div from center screen
  • External: ± 8 V
• Waveform automatic measurements (Measurements continuously updated with statistics. Cursors track last selected measurement. Select up to four measurements from the list.)
  • Voltage: peak-to-peak, maximum, minimum, amplitude, top, base, overshoot, pre-shoot, average- N cycles, average- full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full screen (standard deviation), ratio (RMS1/RMS2)
  • Time: period, frequency, counter, + width, - width, burst width, duty cycle, rise time, fall time, delay, phase, X at min Y, X at Max Y
  • Count: positive pulse count, negative pulse count, rising edge count, falling edge count
  • Mixed: area- N cycles, area- full screen
• Input/output ports
  • USB 2.0 hi-speed host port: Two USB 2.0 hi-speed host ports, front and rear panel; Supports memory devices and printers
  • USB 2.0 hi-speed device port: One USB 2.0 hi-speed device port on rear panel
  • LAN port: 10/100Base-T (requires DSOXLAN module)
  • Video out port: Connect oscilloscope display to an external monitor or projector (requires DSOXLAN module)
  • GPIB port: To allow easy migration into existing test systems (requires DSOXGPIB)
  • Probe compensator output: Square wave: 2.5 Vpp, 1 kHz
  • Kensington style lock: Rear-panel security slot connects to standard Kensington-style lock
  • WaveGen out: Front-Panel BNC Connector
