Keysight Technologies (Agilent HP) MSO9064A (Infiniium 9000 Series) Main Features and Specifications

Product Specs

  • Type Benchtop
  • Bandwidth 600 MHz
  • Scope Channels 4
  • Digital Channels 16
  • Memory Depth 10 Mpt/ch, upgradeable to 1 Gpts
  • Sample Rate 10 GSa/sec
  • Status -
  • Launch Date Oct-2009

See also

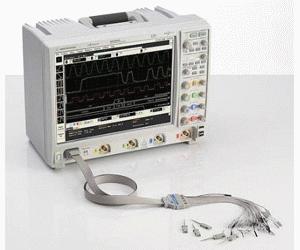

The Agilent Infiniium MSO9064A, equipped with a 15” XGA display, comes in a package that is just 9” (23 cm) deep and weighs only 26 pounds (11.8 kg) to preserve your limited bench space. This scope is engineered to give you the broadest measurement capability available to meet your needs both today and in the future. 16 fully integrated, time-aligned digital channels give you insight into timing relationships and allow precise triggering. Take advantage of optional integrated protocol viewers to quickly isolate physical layer issues causing errors. Customize your toolset with our debug and compliance packages to tailor the scope to your needs.

  • 600 MHz bandwidth
  • 4 analog channels + 16 digital channels
  • 10 GSa/s maximum sample rate
  • Standard 10 Mpts memory per channel, upgradeable to 1 Gpts
  • Get three instruments in one
    • Scope: The powerful features of our Infiniium Series oscilloscopes with InfiniiScan advanced triggering, coupled with superior specifications give you precise signal representation
    • Logic Analyzer: 16 fast, deep-memory digital channels allow you to see critical data values and timing relationships
    • Protocol analyzer: Choose integrated protocol viewers to quickly drill down into packets and time correlate between protocol and physical layers
  • Serial protocol applications including I²C, SPI, RS-232, CAN and FlexRay
  • FPGA dynamic probe application
  • Jitter analysis applications including EZJIT
  • Viewing and analysis applications
