Keysight Technologies (Agilent HP) MSO7012B (InfiniiVision 7000B Series) Main Features and Specifications

Product Specs

  • Type Benchtop Portable
  • Bandwidth 100 MHz
  • Scope Channels 2
  • Digital Channels 16
  • Memory Depth Standard 8 Mpts MegaZoom III deep memory
  • Sample Rate 2 GSa/sec
  • Status -
  • Launch Date Mar-2010

See also

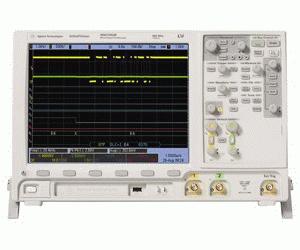

The Agilent InfiniiVision MSO7012B, equipped with a 12.1” XGA display, comes in a package that is just 6.5” deep, and weighs only 13 pounds. In addition to traditional analog signal representation, the scope provides digital signal capture and serial bus triggering and decode. Custom integrated circuits deliver hardware-accelerated operation and put up to 100,000 waveforms on screen each second to help designers capture rich signal detail and intermittent events.

  • 100 MHz bandwidth
  • 2 GSa/s sample rate
  • 2 analog channels plus 16 digital channels
  • Standard 8 Mpts MegaZoom III deep memory
  • Automatic Search and Navigate
  • 12.1” XGA display with 256 intensity levels shows subtle signal detail
  • Fastest uncompromised update rate in the industry with up to 100,000 waveforms/sec
  • Wide range of application packages
  • Core-assisted debug of designs with Xilinx or Altera FPGAs
  • Segmented memory
  • PC-based offline analysis and viewing of previously acquired data
  • RF contextual viewing of scope data using vector signal analysis software
  • Mask testing
