Showing Results for Keysight Technologies (Agilent HP) 54641D

8 results found for Agilent hp 54641d
Similar models:  Keysight Technologies (Agilent HP) 54645D  Keysight Technologies (Agilent HP) 54642D
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 54641D listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2340 to $1298 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

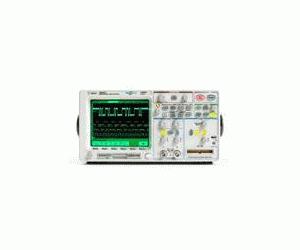

Keysight Technologies (Agilent HP) 54641D (54600 Series) Main Features and Specifications

Product Specs

  • Type Benchtop Portable
  • Bandwidth 350 MHz
  • Scope Channels 2
  • Digital Channels 16
  • Memory Depth 8 MB
  • Sample Rate 2 GSa/sec
  • Status Discontinued
  • Launch Date May-2000
  • Supported until Feb-2011
  • Alternative 6000 Series Oscilloscopes with MegaZoom III technology

See also

The Agilent 54641D 2+16 channel, 350 MHz Mixed-Signal Oscilloscope (MSO), with two scope channels and 16 logic timing channels, uniquely combines the detailed signal analysis of a scope with the multi-channel timing measurements of a logic analyzer. It lets you trigger on and view the complex interactions among your signals on up to 18 channels simultaneously. No more guesswork and no more poking around to see a few channels at a time. The 54641D is ideally suite for CPLD and MCU based applications.

  • Unique 2+16 channel MSO model
  • 350 MHz, 2 GSa/s
  • Patented high-definition display with superior horizontal resolution
  • 8 MB deep memory mapped to 32 levels of intensity, 25 million vectors/second
  • Powerful, flexible triggering including I²C , SPI, LIN, CAN and USB
  • Standard built-in floppy, RS-232 and parallel ports, FFTs
  • Quick Help in 11 languages
